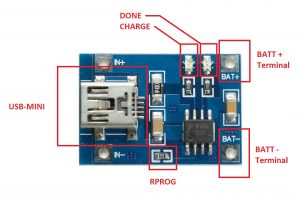

Description This charger is a very small battery charger module. It uses the TP4056 controller and standard configuration is with 1A charge current. Technical Specifications Module Name: rechargeable lithium battery plate Method: linear charge 1% Charging current: 1A Adjustable (Through RPROG) Charge Accuracy: 1.5% Input voltage: 4.5V-5.5V Full charge voltage: 4.2V Charging indicator: red green full charge Charging input interface: mini USB Working temperature: -10 Degree to 85 Degree Polarity Reversal: NOT ALLOWED Weight: 10g external Dimensions: 25 * 19 * 10mm Current Regulation Chart RPROG (k) IBAT (mA) 30 50 20 70 10 130 5 250 4 300 3 400 2 580 1.66 690 1.5 780 1.33 900 1.2 1000 Related Documents TP4056 Datasheet TP4056 Product Review Package Includes 1x TP4056-1A Li-ION Battery Charger Module (Tested and QC-OK)
