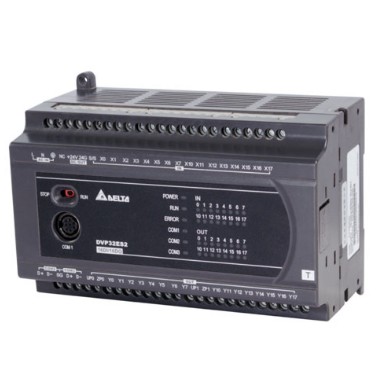

DELTA PLC DVP32ES200R 100-240VAC 16DI 16DO Relay Output Extended Product Type : DVP-ES2/EX2 series Product ID: DVP32ES200R Delta Type Designation : DVP-ES2/EX2 series Features of Delta PLC DVP32ES200R ES2 series is a small PLC for basic sequential control. It is economical, highly efficient and functional. Specification MPU points: 16 / 20 / 24 / 32 / 40 / 60 Program capacity: 16k steps Built-in with 3 COM ports: 1 RS-232 port and 2 RS-485 ports, all are able to operate independently (Master/Slave) Max. I/O points: 256 input points 16 output points, or 256 output points 16 input points DVP-EX2 MPU is built in with 12-bit 4AD/2DA and offers analog/temperature modules of 14-bit resolution. Built-in with 8 high-speed input points (2 points for 100kHz, 6 points for 10kHz) and supports U/D, U/D Dir, A/B counting modes New motion control instructions: Close loop control, alignment mark, shield, immediate variable speed, S-Curve acceleration/deceleration Application in emerging industry: Exclusive instructions and function blocks designed for PV solar tracker Handy instructions for frequency inverter: For controlling the forward running, reverse running, RUN and STOP of Delta’s AC motor drives Password protection: Password for subroutine, user ID, restriction on trial times Highly efficient instruction efficient instruction execution Power supply voltage : 100 ~ 240VAC (-15% ~ 10%), 50/60Hz – 5% Power consumption : 30VA DC24V current output : 500MA
